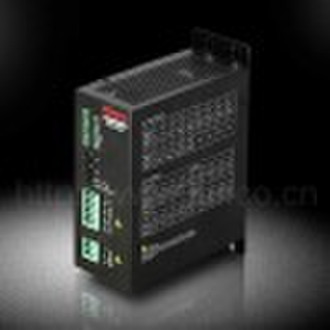

Stepper driver 2M1180N

Feature: 1. High-performance, low prices; 2. The input voltage of 2M1180N is 77VAC 123VAC (single-phase); 3. Automatic parameter adjustable regulation; 4. Phase memory technology: remember the phase position of the motor when the motor stopped, when re-power the driver, the motor won’t shake anymore; 5. PLS+DIR and CW/CCW control signal available; 6. Supply Optocoupler isolated ERR output signal; 7. Automatic semi-current locking, reduce the motor’s heat drastically; 8. Optocoupler isolated signal input circuit. The maximum frequency of control signal is up to 400k Hz; 9. 12 micro-step value, the maximum micro-step value is 128; 10. With the protection function of overvoltage, undervoltage, short circuit and heat protection. Parameter tableParameterValueInput voltageSingle phase 77VAC 123VAC,(50Hz)Output current4.5A, 5A, 5.5A, 6A, 6.5A, 7A, 7.5A, 8AMicro step2/4/5/8/10/16/20/32/50/64/100/128Input signalPLS/DIR/FRE current limit: 6 16 mAControl signal modePLS + DIR, CW/CCW)Output signalProt: ERR( maximum output current: 10mA )ProtectionOver voltage, under voltage, short circuit and heat protection.Brake mode *Available to connect the power resister. Need custom.Environment parameterCooling wayFanEnvironmentOperation environmentAvoid the environment with great amount of metallic powder, oil mist, or erosive gases.Operation humidity<85%, RHOperation temperature0°c +40°cStorage temperature-20°c +70°cWeight1.5KgDimensions210mm×147mm×66mmProtect levelIP20
